SPA 4-rillig

SPA 4-rillig

Delivery Time: auf Anfrage

b2= 65 mm

Nabenscheibe / Full hub pulley

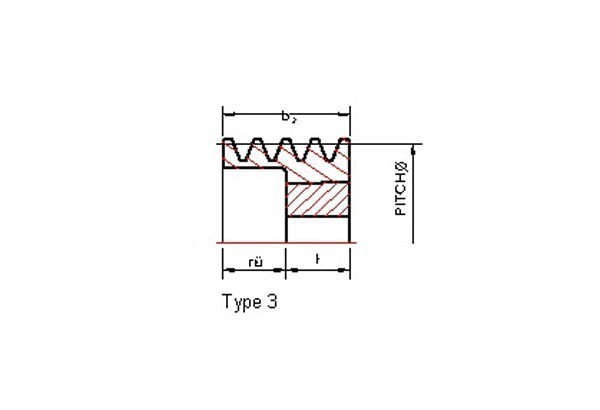

Wirk. Ø pitch diameter dw	Max. Bohrung bore Ø	Nabe hub Ø	Nabenlänge length of hub L	Type	S	T	U	Gewicht weight kg
63	30	-	65	3 •	-	-	-	1.2
71	30	-	65	3 •	-	-	-	1.5
75	30	-	65	3 •	-	-	-	1.7
80	35	-	65	3 •	-	-	-	1.9
85	35	-	65	3 •	-	-	-	2.2
90	42	-	65	3 •	-	-	-	2.5
95	42	-	50	3 •	-	-	-	2.8

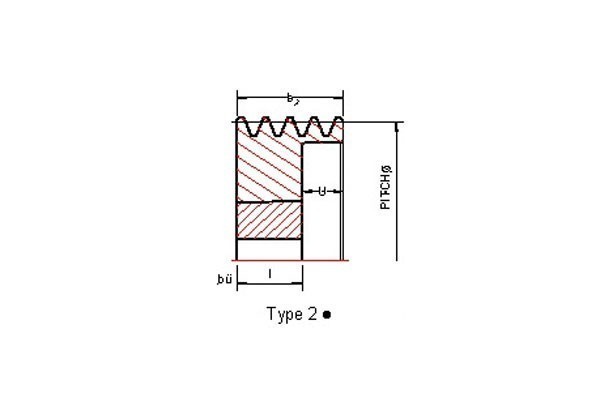

100	42	-	50	4 •	-	-	15	2.8
106	42	-	50	4 •	-	-	15	3.1
112	42	-	50	4 •	-	-	15	3.4
118	42	-	50	4 •	-	-	15	3.9
125	42	-	50	4 •	-	-	15	4.4
132	42	-	50	4 •	-	-	15	5
140	42	-	50	4 •	-	-	15	5.6

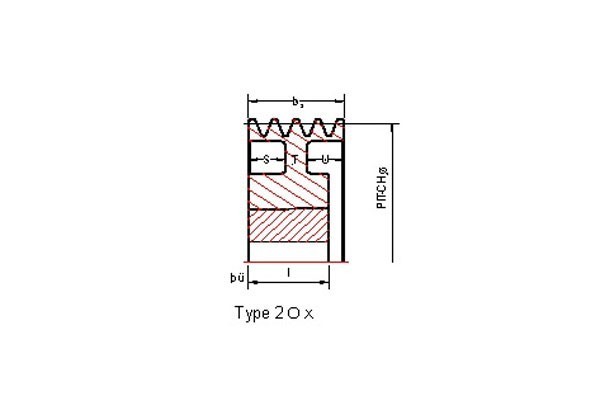

150	45	75	50	2 O	25	15	25	4.8
160	50	80	50	2 O	26.5	13	26.5	5.2
170	50	80	60	2 O	26.5	13	26.5	5.3
180	50	80	60	2 O	26.5	13	26.5	6.2
190	50	80	60	2 O	26.5	13	26.5	6.6
200	60	100	60	2 O	26.5	13	26.5	8.1
224	60	100	60	2 O	26	13	26	9.1
236	60	100	60	2 O	26	13	26	9.6
250	60	100	60	2 O	26	13	26	9.4
280	60	100	60	2 x	26	13	26	11.6
300	60	100	60	2 x	25.5	14	25.5	13.7
315	60	100	60	2 x	25.5	14	25.5	14.4
355	65	105	60	2 x	25.5	14	25.5	15.7
400	65	105	65	2 x	25.5	14	25.5	19.2
450	70	110	70	2 x	25.5	14	25.5	23.6
500	70	110	70	2 x	24.5	16	24.5	26.7
560	70	110	70	2 x	24.5	16	24.5	30.4
630	70	110	70	2 x	24.5	16	24.5	37.7
