SPB 4-rillig

SPB 4-rillig

Delivery Time: auf Anfrage

b2 = 82 mm

Nabenscheibe / Full hub pulley

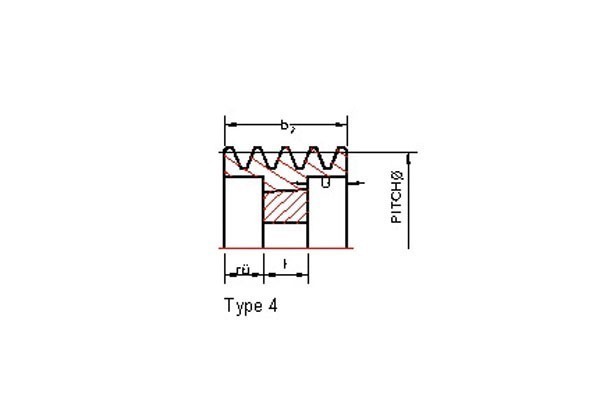

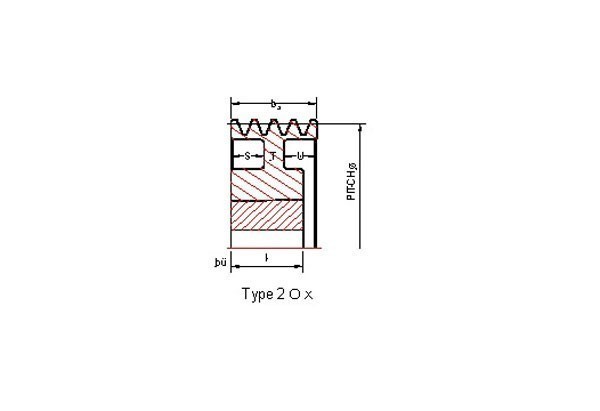

Wirk. Ø pitch diameter dw	Max. Bohrung bore Ø	Nabe hub Ø	Nabenlänge length of hub L	Type	S	T	U	Gewicht weight kg
80	42		50	4 •	-	-	32	2.5
90	42		50	4 •	-	-	32	2.6
100	42	-	50	4 •	-	-	32	3.1
106	42	-	50	4 •	-	-	32	3.5
112	42	-	50	4 •	-	-	32	3.8
118	42	-	50	4 •	-	-	32	4.3
125	42	-	50	4 •	-	-	32	4.8
132	42	-	50	4 •	-	-	32	5.3
140	42	-	50	4 •	-	-	32	6
150	42	-	50	4 •	-	-	32	6.8
160	50	80	60	2 O	35	12	35	6.5
170	50	80	60	2 O	35	12	35	7.2
180	55	90	60	2 O	35	12	35	7.7
190	55	90	60	2 O	35	12	35	8.2
200	55	90	60	2 O	35	12	35	8.9
212	60	100	60	2 O	34.5	13	34.5	10
224	60	100	60	2 O	34.5	13	34.5	10.6
236	60	100	60	2 O	34.5	13	34.5	10.6
250	65	105	65	2 O	34.5	13	34.5	13.1
280	65	105	65	2 O	34	14	34	14
300	65	105	65	2 O	34	14	34	15.2
315	70	110	65	2 O	34	14	34	16.4
355	70	110	65	2 x	34	14	34	17.9
400	75	120	75	2 x	33.5	15	33.5	21.9
450	75	120	75	2 x	33.5	15	33.5	26.8
500	75	125	85	1 x	33.5	15	33.5	30.3
560	80	130	85	1 x	33.5	15	33.5	37.9
630	80	130	90	1 x	33.5	15	33.5	43.5
