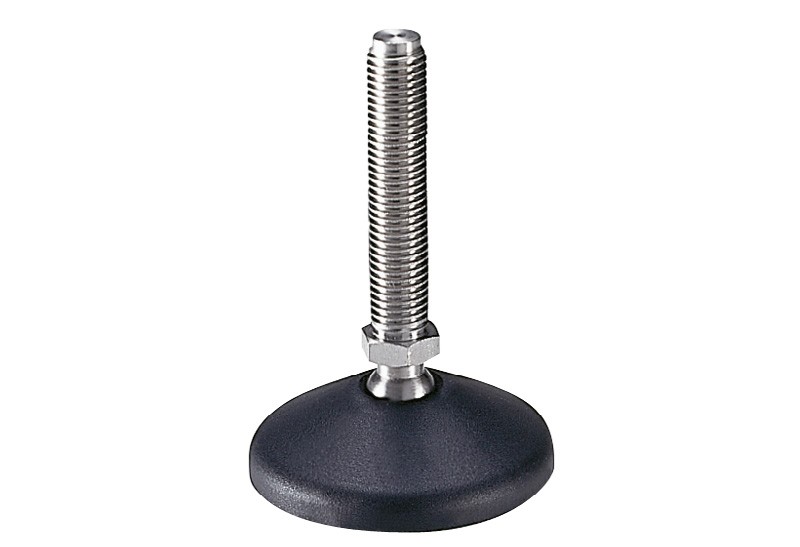

Gelenkfuß Ø 100
plus shipping
Delivery Time: auf Anfrage

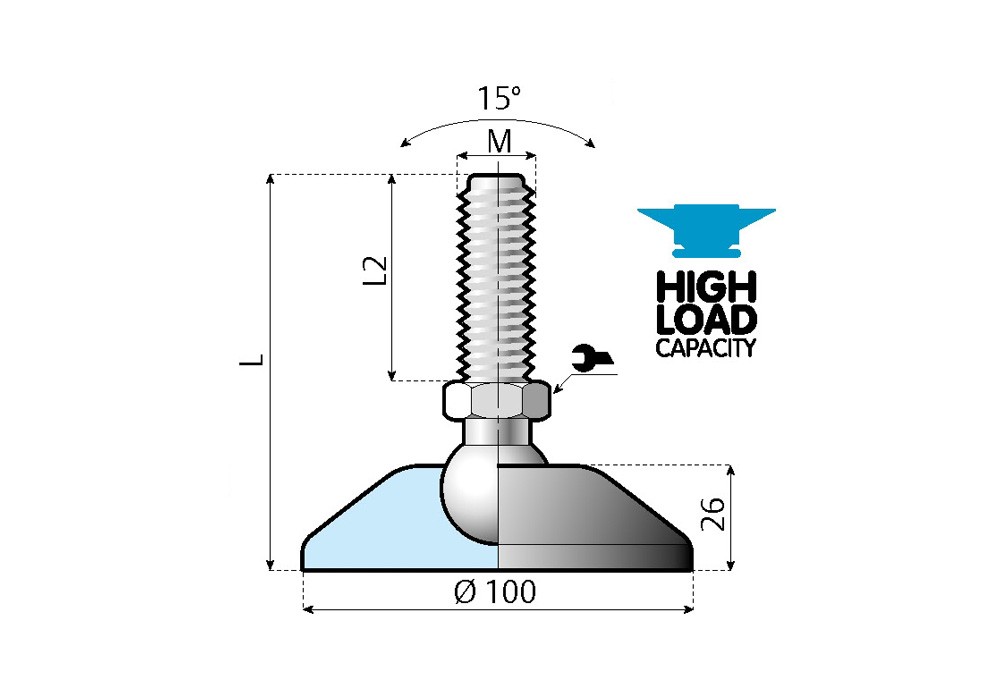

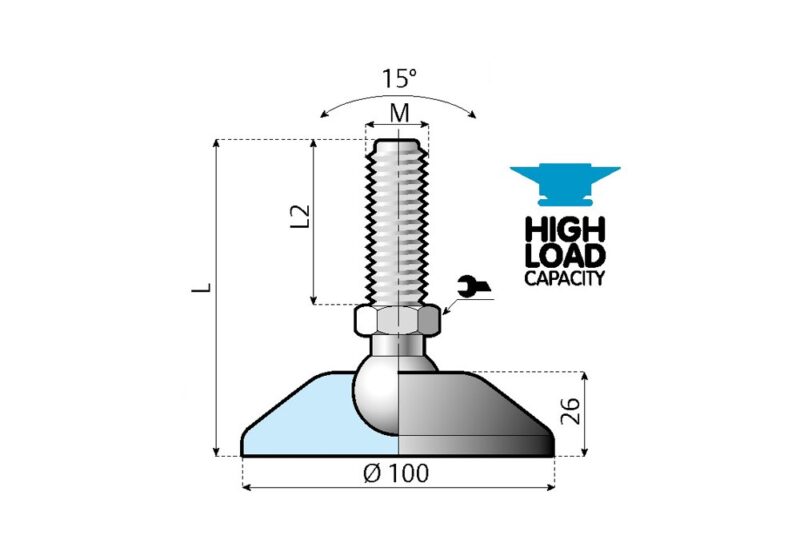

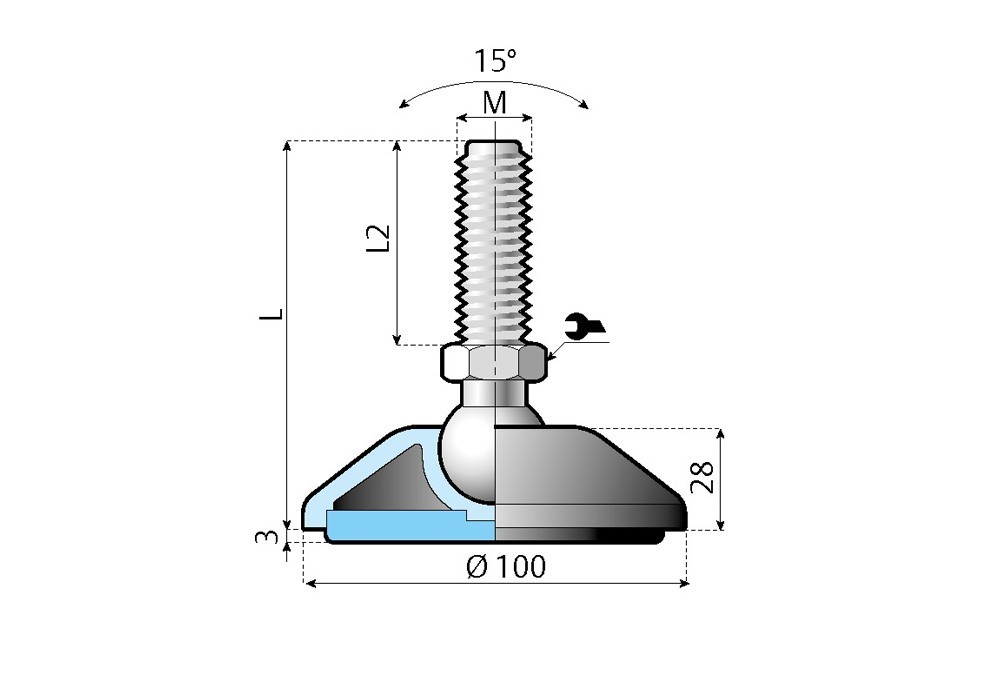

Spezifikationen
Basis: verstärktes Polyamid
| Spindelmaterial | M | L mm | L2 mm | Artikelbezeichnung montiert | Spindeltyp | SW | Belastung | |
| Standard Ohne Gummi | Rutschfest Mit Gummi | |||||||
| Verzinkter Stahl | M16 | 99 | 60 | LA100H-PM16L100 | LA100H-PM16L100R | 2B | 20 | 18000 |
| Verzinkter Stahl | M16 | 154 184 | 115 145 | LA100H-PM16L155 LA100H-PM16L185 | LA100H-PM16L155R LA100H-PM16L185R | 2B | 20 | 18000 |
| Verzinkter Stahl | M16 | 234 | 195 | LA100H-PM16L235 | LA100H-PM16L235R | 2B | 20 | 18000 |
| Verzinkter Stahl | M20 | 124 | 85 | LA100H-PM20L125 | LA100H-PM20L125R | 2B | 20 | 18000 |
| Verzinkter Stahl | M20 | 154 | 115 | LA100H-PM20L155 | LA100H-PM20L155R | 2B | 20 | 18000 |
| Verzinkter Stahl | M20 | 184 | 145 | LA100H-PM20L185 | LA100H-PM20L185R | 2B | 20 | 18000 |
| Verzinkter Stahl | M20 | 234 | 195 | LA100H-PM20L235 | LA100H-PM20L235R | 2B | 20 | 18000 |
| Verzinkter Stahl | M24 | 130 | 85 | LA100H-PM24L130 | LA100H-PM24L130R | 2C | 24 | 18000 |
| Verzinkter Stahl | M24 | 160 | 115 | LA100H-PM24L160 | LA100H-PM24L160R | 2C | 24 | 18000 |
| Verzinkter Stahl | M24 | 190 | 145 | LA100H-PM24L190 | LA100H-PM24L190R | 2C | 24 | 18000 |
| Verzinkter Stahl | M24 | 240 | 195 | LA100H-PM24L240 | LA100H-PM24L240R | 2C | 24 | 18000 |
| Rostfreier Stahl AISI 304 | M16 | 99 | 60 | LA100H-SM16L100 | LA100H-SM16L100R | 2B | 20 | 18000 |
| Rostfreier Stahl AISI 304 | M16 | 154 | 115 | LA100H-SM16L155 | LA100H-SM16L155R | 2B | 20 | 18000 |
| Rostfreier Stahl AISI 304 | M16 | 184 | 145 | LA100H-SM16L185 | LA100H-SM16L185R | 2B | 20 | 18000 |
| Rostfreier Stahl AISI 304 | M16 | 234 | 195 | LA100H-SM16L235 | LA100H-SM16L235R | 2B | 20 | 18000 |
| Rostfreier Stahl AISI 304 | M20 | 124 | 85 | LA100H-SM20L125 | LA100H-SM20L125R | 2B | 20 | 18000 |
| Rostfreier Stahl AISI 304 | M20 | 154 | 115 | LA100H-SM20L155 | LA100H-SM20L155R | 2B | 20 | 18000 |
| Rostfreier Stahl AISI 304 | M20 | 184 | 145 | LA100H-SM20L185 | LA100H-SM20L185R | 2B | 20 | 18000 |
| Rostfreier Stahl AISI 304 | M20 | 234 | 195 | LA100H-SM20L235 | LA100H-SM20L235R | 2B | 20 | 18000 |
| Rostfreier Stahl AISI 304 | M24 | 130 | 85 | LA100H-SM24L130 | LA100H-SM24L130R | 2C | 24 | 18000 |
| Rostfreier Stahl AISI 304 | M24 | 160 | 115 | LA100H-SM24L160 | LA100H-SM24L160R | 2C | 24 | 18000 |
| Rostfreier Stahl AISI 304 | M24 | 190 | 145 | LA100H-SM24L190 | LA100H-SM24L190R | 2C | 24 | 18000 |
| Rostfreier Stahl AISI 304 | M24 | 240 | 195 | LA100H-SM24L240 | LA100H-SM24L240R | 2C | 24 | 18000 |
| PA.FE | M16 | 109 | 62 | LA100H-NM16L110 | LA100H-NM16L110R | 3C | 24 | 4000 |

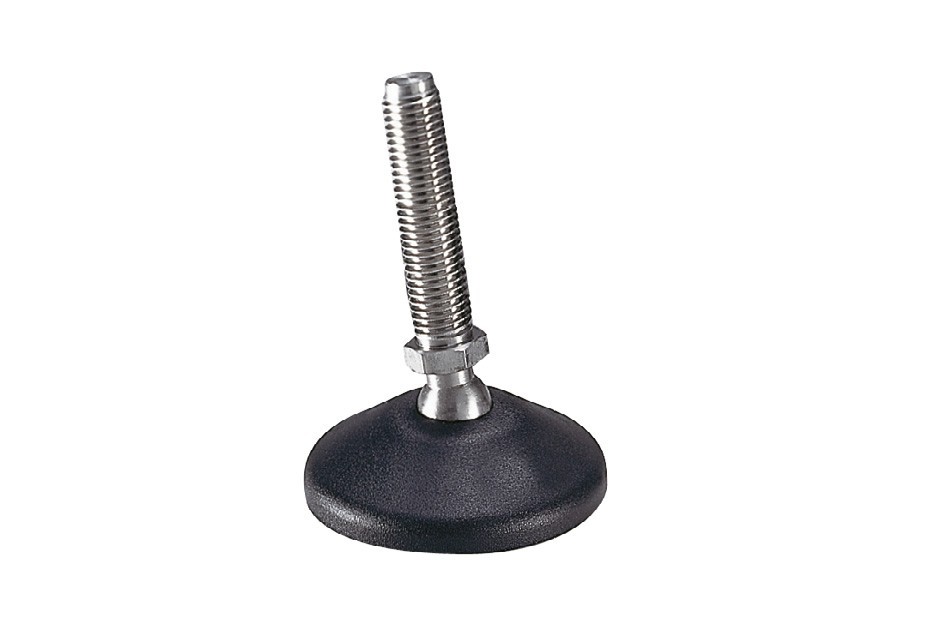

Reihe mit stabiler Grundplatte
Die stabile Grundplatte macht es den Herstellern der Geräte leichter,
die Anforderungen der USDA und anderer staatlicher Behörden bezüglich der Kontamination von
Lebensmittelprodukten und des Bakterienwachstums zu erfüllen.
Basis: verstärktes Polyamid
| Spindelmaterial | M | L mm | L2 mm | Artikelbezeichnung assembled | Spindle Type | SW | Belastung |
|---|---|---|---|---|---|---|---|
| Verzinkter Stahl | M16 | 97 | 60 | LA100SH-PM16L95 | 2B | 24 | 25000 |
| Verzinkter Stahl | M16 | 152 | 115 | LA100SH-PM16L150 | 2B | 24 | 25000 |
| Verzinkter Stahl | M16 | 182 | 145 | LA100SH-PM16L180 | 2B | 24 | 25000 |
| Verzinkter Stahl | M16 | 232 | 195 | LA100SH-PM16L230 | 2B | 24 | 25000 |
| Verzinkter Stahl | M20 | 122 | 85 | LA100SH-PM20L120 | 2B | 24 | 25000 |
| Verzinkter Stahl | M20 | 152 | 115 | LA100SH-PM20L150 | 2B | 24 | 25000 |
| Verzinkter Stahl | M20 | 182 | 145 | LA100SH-PM20L180 | 2B | 24 | 25000 |
| Verzinkter Stahl | M20 | 232 | 195 | LA100SH-PM20L240 | 2B | 24 | 25000 |
| Verzinkter Stahl | M24 | 130 | 85 | LA100SH-PM24L130 | 2C | 24 | 25000 |
| Verzinkter Stahl | M24 | 160 | 115 | LA100SH-PM24L160 | 2C | 24 | 25000 |
| Verzinkter Stahl | M24 | 190 | 145 | LA100SH-PM24L190 | 2C | 24 | 25000 |
| Verzinkter Stahl | M24 | 240 | 195 | LA100SH-PM24L240 | 2C | 24 | 25000 |
| Rostfreier Stahl AISI 304 | M16 | 97 | 60 | LA100SH-SM16L95 | 2B | 24 | 25000 |
| Rostfreier Stahl AISI 304 | M16 | 152 | 115 | LA100SH-SM16L150 | 2B | 24 | 25000 |
| Rostfreier Stahl AISI 304 | M16 | 182 | 145 | LA100SH-SM16L180 | 2B | 24 | 25000 |
| Rostfreier Stahl AISI 304 | M16 | 232 | 195 | LA100SH-SM16L230 | 2B | 24 | 25000 |
| Rostfreier Stahl AISI 304 | M20 | 122 | 85 | LA100SH-SM20L120 | 2B | 24 | 25000 |
| Rostfreier Stahl AISI 304 | M20 | 152 | 115 | LA100SH-SM20L150 | 2B | 24 | 25000 |
| Rostfreier Stahl AISI 304 | M20 | 182 | 145 | LA100SH-SM20L180 | 2B | 24 | 25000 |
| Rostfreier Stahl AISI 304 | M20 | 232 | 195 | LA100SH-SM20L240 | 2B | 24 | 25000 |
| Rostfreier Stahl AISI 304 | M24 | 130 | 85 | LA100SH-SM24L130 | 2C | 24 | 25000 |
| Rostfreier Stahl AISI 304 | M24 | 160 | 115 | LA100SH-SM24L160 | 2C | 24 | 25000 |
| Rostfreier Stahl AISI 304 | M24 | 190 | 145 | LA100SH-SM24L190 | 2C | 24 | 25000 |
| Rostfreier Stahl AISI 304 | M24 | 240 | 195 | LA100SH-SM24L240 | 2C | 24 | 25000 |
| PA.FE | M16 | 109 | 62 | LA100SH-NM16L110 | 3C | 24 | 4000 |
