drawn screw thread
plus shipping
Delivery Time: auf Anfrage
Drawn screw threads have approximately the same material thickness on the inner and outer diameter.
Spezifikationen
Drawn screw threads have approximately the same material thicknesses on the inner and outer diameters.
The higher material thickness at the outer diameter acts against bending the screw threads in the case of bulky transport goods, e.g. Wood chips.
We supply rolled screw threads in all kinds of materials and designs.
Required ordering information for drawn screw threads

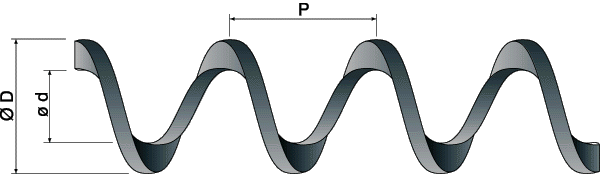

L= length
D = outer diameter
d = inner diameter / shaft or tube diameter
S = pitch
s= thickness
right- or left-handed
Material
- mild steel (St 37, St 52)
- stainless steel (1.4301, 1.4404, 1.4571)
- heat resistant steel (1.4828, 1.4841)
- other materials on request
Drawn screw thread mild steel and stainless steel – table:
| Außen-Ø | Steigung | Innen-Ø | Stärke |
|---|---|---|---|
| 40 | 40 | 20 | 4 / 3,9 |
| 40 | 30 | 20 | 4 / 3,8 |
| 45 | 45 | 25 | 4 / 3,8 |
| 45 | 30 | 25 | 4 / 3,7 |
| 50 | 50 | 20 | 4 / 3,7 |
| 50 | 35 | 20 | 4 / 3,6 |
| 50 | 50 | 30 | 4 / 3,9 |
| 50 | 35 | 30 | 4 / 3,8 |
| 55 | 55 | 25 | 4 / 3,8 |
| 55 | 35 | 25 | 4 / 3,7 |
| 55 | 55 | 35 | 4 / 3,9 |
| 55 | 35 | 35 | 4 / 3,8 |
| 60 | 60 | 20 | 4 / 3,7 |
| 60 | 40 | 20 | 4 / 3,6 |
| 60 | 30 | 20 | 4 / 3,5 |
| 60 | 60 | 30 | 4 / 3,8 |
| 60 | 40 | 30 | 4 / 3,7 |
| 60 | 30 | 30 | 4 / 3,6 |
| 65 | 65 | 25 | 4 / 3,7 |
| 65 | 45 | 25 | 4 / 3,6 |
| 65 | 35 | 25 | 4 / 3,5 |
| 65 | 65 | 35 | 4 / 3,8 |
| 65 | 45 | 35 | 4 / 3,7 |
| 65 | 35 | 35 | 4 / 3,6 |
| 70 | 70 | 30 | 4 / 3,6 |
| 70 | 50 | 30 | 4 / 3,5 |
| 70 | 35 | 30 | 4 / 3,4 |
| 70 | 70 | 40 | 4 / 3,8 |
| 70 | 50 | 40 | 4 / 3,7 |
| 70 | 35 | 40 | 4 / 3,6 |
| 75 | 75 | 25 | 4 / 3,3 |
| 75 | 50 | 25 | 4 / 3,2 |
| 75 | 40 | 25 | 4 / 3,1 |
| 75 | 75 | 35 | 4 / 3,5 |
| 75 | 50 | 35 | 4 / 3,4 |
| 75 | 40 | 35 | 4 / 3,3 |
| 80 | 80 | 30 | 4 / 3,4 |
| 80 | 55 | 30 | 4 / 3,3 |
| 80 | 40 | 30 | 4 / 3,2 |
| 80 | 80 | 40 | 4 / 3,5 |
| 80 | 55 | 40 | 4 / 3,4 |
| 80 | 40 | 40 | 4 / 3,3 |
| 80 | 80 | 50 | 4 / 3,8 |
| 80 | 55 | 50 | 4 / 3,7 |
| 80 | 40 | 50 | 4 / 3,6 |
| 80 | 80 | 60 | 4 / 3,9 |
| 80 | 55 | 60 | 4 / 3,8 |
| 80 | 40 | 60 | 4 / 3,7 |
| 85 | 85 | 25 | 4 / 3,2 |
| 85 | 60 | 25 | 4 / 3,1 |
| 85 | 45 | 25 | 4 / 3,0 |
| 85 | 80 | 35 | 4 / 3,4 |
| 85 | 60 | 35 | 4 / 3,3 |
| 85 | 45 | 35 | 4 / 3,2 |
| 90 | 90 | 30 | 4 / 3,2 |
| 90 | 60 | 30 | 4 / 3,1 |
| 90 | 45 | 30 | 4 / 3,0 |
| 90 | 90 | 40 | 4 / 3,4 |
| 90 | 60 | 40 | 4 / 3,3 |
| 90 | 45 | 40 | 4 / 3,2 |
| 90 | 90 | 50 | 4 / 3,7 |
| 90 | 60 | 50 | 4 / 3,5 |
| 90 | 45 | 50 | 4 / 3,4 |
| 90 | 90 | 60 | 4 / 3,9 |
| 90 | 60 | 60 | 4 / 3,8 |
| 90 | 45 | 60 | 4 / 3,7 |
| 95 | 95 | 25 | 4 / 3,1 |
| 95 | 65 | 25 | 4 / 3,0 |
| 95 | 50 | 25 | 4 / 2,9 |
| 95 | 95 | 35 | 4 / 3,2 |
| 95 | 65 | 35 | 4 / 3,1 |
| 95 | 50 | 35 | 4 / 3,0 |
| 100 | 100 | 40 | 4 / 3,4 |
| 100 | 70 | 40 | 4 / 3,3 |
| 100 | 50 | 40 | 4 / 3,2 |
| 100 | 100 | 50 | 4 / 3,5 |
| 100 | 70 | 50 | 4 / 3,4 |
| 100 | 50 | 50 | 4 / 3,3 |
| 100 | 100 | 60 | 4 / 3,6 |
| 100 | 70 | 60 | 4 / 3,5 |
| 100 | 50 | 60 | 4 / 3,4 |
