SPA 5-rillig

SPA 5-rillig

Lieferzeit: auf Anfrage

b2= 80 mm

Nabenscheibe / Full hub pulley

Wirk. Ø pitch diameter dw	Max. Bohrung bore Ø	Nabe hub Ø	Nabenlänge length of hub L	Type	S	T	U	Gewicht weight kg

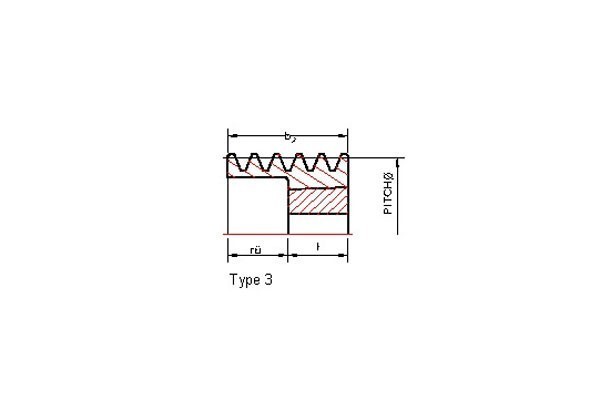

80	35	-	80	3 •	-	-	-	2.4
85	35	-	80	3 •	-	-	-	2.7
90	42	-	80	3 •	-	-	-	3
95	42	-	80	4 •	-	-	30	3.5
100	42	-	50	4 •	-	-	30	3.1
106	42	-	50	4 •	-	-	30	3.4
112	42	-	50	4 •	-	-	30	3.8
118	48	-	50	4 •	-	-	30	4.2
125	48	-	50	4 •	-	-	30	4.9
132	48	-	50	4 •	-	-	30	5.3
140	48	-	50	4 •	-	-	30	6.1

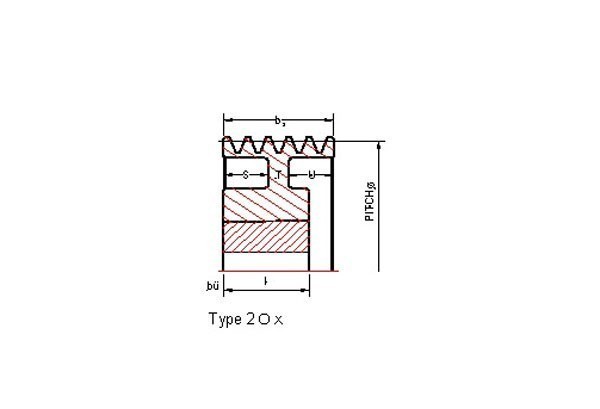

150	50	80	50	2 O	33.5	13	33.5	5.3
160	50	80	50	2 O	33.5	13	33.5	5.8
170	50	80	50	2 O	33.5	13	33	6.6
180	55	90	65	2 O	33.5	13	33.5	7.5
190	55	90	65	2 O	32.5	15	32.5	8
200	60	100	65	2 O	32.5	15	32.5	9.3
224	60	100	65	2 O	32.5	15	32.5	10
236	60	100	65	2 O	32.5	15	32.5	10.7
250	65	105	65	2 x	32.5	15	32.5	11
280	65	105	65	2 x	32.5	15	32.5	13.8
300	65	105	70	2 x	32.5	15	32.5	14.5
315	65	105	70	2 x	32.5	15	32.5	15.2
355	70	110	70	2 x	32.5	15	32.5	16.3
400	70	110	70	2 x	32.5	15	32.5	17.2
450	70	110	70	2 x	32.5	15	32.5	21.8
500	75	120	70	2 x	32.5	15	32.5	29.1
560	75	120	70	2 x	32.5	15	32.5	32.7
630	75	120	75	2 x	32.5	15	32.5	37.2
